Motorcycle Frame & Road Simulator Chassis

Description

– A motorcycle’s chassis is the frame, acting as its backbone for structural support and component mounting.
– Road simulators are testing devices that replicate real-world driving conditions to evaluate chassis performance, often mimicking vibrations, impacts, and other forces.
– They help assess chassis strength, flexibility, and overall handling characteristics.

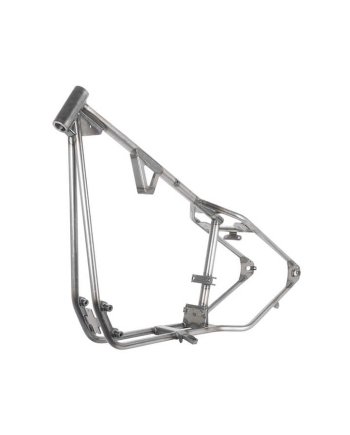

Motorcycle Chassis:
Function:
Provides the primary structure for the motorcycle, supporting the engine, suspension, and rider.
Types:
Common types include twin-spar, trellis, and monocoque frames, each offering different strengths and weaknesses.
Key Components:
Includes the frame, swingarm, and subframe, all contributing to the overall rigidity and stability.
Motorcycle Frame & Road Simulator Chassis
The chassis design significantly impacts a motorcycle’s handling, stability, and overall performance.
Road Simulator Chassis:
Purpose:
A testing device that subjects a motorcycle chassis to simulated road conditions.
Functionality:
Employs actuators and other mechanisms to replicate forces like acceleration, braking, and suspension movement.
Benefits:
Allows engineers to analyze chassis behavior under stress, identify weaknesses, and optimize designs.
Features:
May include adjustable supports, vibration mechanisms, and data acquisition systems for detailed analysis.
Applications:
Used for evaluating structural integrity, identifying potential noise and vibration issues, and validating design changes.
